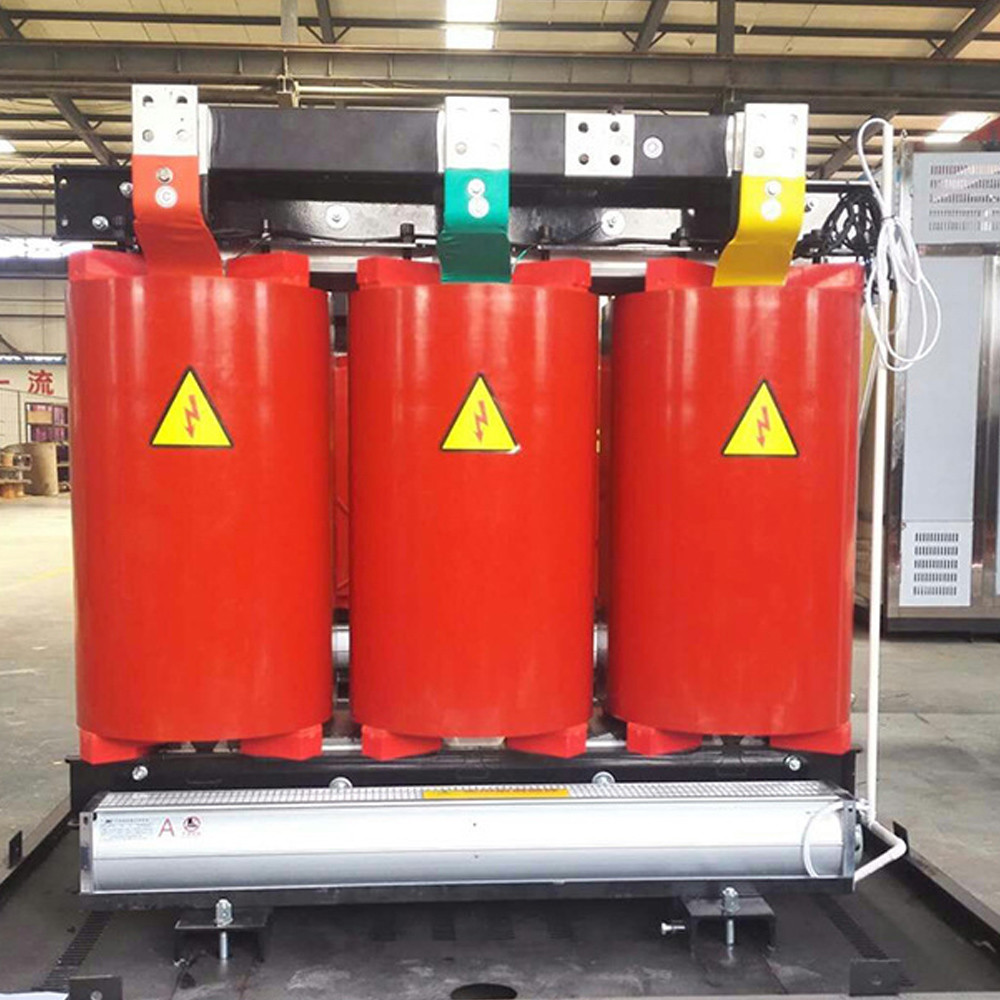

1600kVA 11-0.4kv Cast Resin Dry Type Transformer with CT

1600kVA 11-0.4kv Cast Resin Dry Type Transformer with CT

Low loss: the product no-load is 20% lower than the SC(B) 11 type product with an excellent energy saving effect, economic-efficient operation and without maintenance.
Low noise: the product noise level is 10-15 db lower than the existing professional standard JB/T10088-1999 Sound Level of 6-220KV Transformer
Low partial discharge: resin mixture adopts foreign leading-edge mixing method and film type vacuum deaerator to evenly mix the mixture and remove the bubble in the bottom part of mixture. The product has a low partial discharge which can be controlled at 5PC.
Both high voltage and low voltage coils can be poured in vacuum pressure so as to enable a encapsulating of resin insulation and immersion among layers and inter-turns.
The poured part has a compact solidity structure with anti-faming, anti-explosion and environmental protection features.
Glass fiber and other raw materials of winding coil have self-extinguishing property and will not produce arc due to short circuit. Resin will not produce harmful gas under high temperature.
Great mechanical strength: resin with fillings can lower the differences of dilataion coefficient, cure shrinkage rate and internal stress as well as increase the hardness of condensate within the poured area. Precast and fashioned reinforcing materials are placed in the seal coat of epoxy resin which is painted on the inside and outside surface of high and low-voltage coil, making the structure as compact as the reinforced concrete so that the mechanical strength is greater than epoxy resin which can bear the electrodynamic action caused by sudden short-circuit without damage.

Transformer normal service conditions

The height above the sea level is below 1000m;
Highest air temperature +40ºC;
Highest daily average air temperature+30ºC;
Highest annual average air temperature +20ºC;
Lowest outdoor air temperature -25ºC.

Chracteristics
1. Thin resin structure that never cracks
2. Epoxy resin vacuum pressure casting process
3. Iron core model simulation analysis

TECHNICAL INDEX

Our workshop:

OUR SERVICE:

1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.

cast resin dry type transformer

dry cast resin transformers

1600kVA 11-0.4kv Cast Resin Dry Type Transformer with CT Images
