SC(B)10 Series Resin-insulated Dry Type Transformer,cast resin transformer,dry-type transformer，cast resin dry transform

Name: SCB10 Series Resininsulated Dry Type Transformercast resin transformerdrytype transformercast resin dry transform
Brand: HENGFENGYOU
Price: 200 USD

SC(B)10 Series Resin-insulated Dry Type Transformer,cast resin transformer,dry-type transformer，cast resin dry transform Manufactures

Brand Name : HENGFENGYOU

Model Number : Dry Type Transformer

Certification : ISO IEC CB COC KEMA SNI SABS CCC

Place of Origin : China

MOQ : 1

Price : 200-200000/piece

Payment Terms : LC T/T

Supply Ability : 5000 pieces/year

Delivery Time : 15 DAYS

Packaging Details : wooden case package

Name : Power Distribution Transformer

Feature : Superior performance, product safety, reliability, environmental protection

Brand : Power Distribution Transformer

Standard : CE,ISO,UL,SABS,3C， IEC60076-11 ISO9001 ISO14001 KEMA CE

Contact Now

SC(B)10 Series Resin-insulated Dry Type Transformer,cast resin transformer,dry-type transformer,cast resin dry transform

Dry Type Power Transformer 5000kva High Frequency


SC(B)10 Serie Series amorphous alloy dry-type transformer is a new type energy-saving transformers, which combines technology advantage with low-loss of amorphous alloy and good- insulation and strong mechanical strength of traditional epoxy resin pouring transformer.

By comparing with the traditional SCB10 series silicon steel dry-type transformers, it can approx, reduce no-load loss by 70%, no-load current by 80%, and operating temperature by 30-40℃; the service life extends approx.10 years. Moreover, SCBH15 Series transformer has the advantages of fire resistance, flame retardant, high reliability and maintenance free, which can be used in the power load center, suitable for places with higher demands in fire protection and higher safe demand environment

  	 			Rated Capacity
(KVA)
 			No-load Loss
SCB10 (W)
 			No-load Loss
SCBH15 (W)
 			Comparison
 			Load Loss
SCB10 (W)
 			Load Loss
SCB15 (W)

 			200
 			620
 			200


68%
 			2530
 			2530

 			250
 			720
 			230
 			2760
 			2760

 			315
 			880
 			280
 			3470
 			3470

 			400
 			980
 			310
 			3990
 			3990

 			500
 			1160
 			360



69%
 			4880
 			4880

 			630
 			1340
 			410
 			5880
 			5880

 			800
 			1520
 			480
 			6960
 			6960

 			1000
 			1770
 			550
 			8130
 			8130

 			1250
 			2090
 			650
 			9690
 			9690

 			1600
 			2450
 			760
 			11730
 			11730

 			2000
 			3050
 			1000

67%
 			14450
 			14450

 			2500
 			3600
 			1200
 			17170
 			17170



 			ScBH15
 			Silicon Steel Sheet ScBH 10
 			Review analysis

 			Operating
Temperature
 			70℃
 			100℃
 			Amorphous transformer core temperature is about 30℃ coil temperature is about 40℃; silicon steel transformer core temperature is about 45℃, coil temperature is about 50℃. The amorphous transformer can work under lowtemperature , has strong overload capacity, is much safer.

 			Insulation Cracking
 			Slow
 			Fast
 			Amorphous transformer has the property of low loss, producing less heat, low operating temperature, slow insulation cracking, high reliability, long working life.

 			Working Life
 			30 years reliable operation
 			20 years reliable operation

 			Harmonic
Resistance
 			Property not affected by the harmonic voltage
 			Causing higher iron loss and noise.
 			Iron loss is 1/10 of the silicon steel sheet transformer under high frequency, it can decrease iron loss caused by harmonic current when operating with harmonic voltage Taking advantage of transformer capacity to reduce the effect caused by harmonic, and reduce equipment investment cost, increase the system stability.



SC(B)10 Series Resin-insulated Dry Type Transformer,cast resin transformer,dry-type transformer，cast resin dry transform

Product Tags:

cast resin dry type transformer

dry cast resin transformers

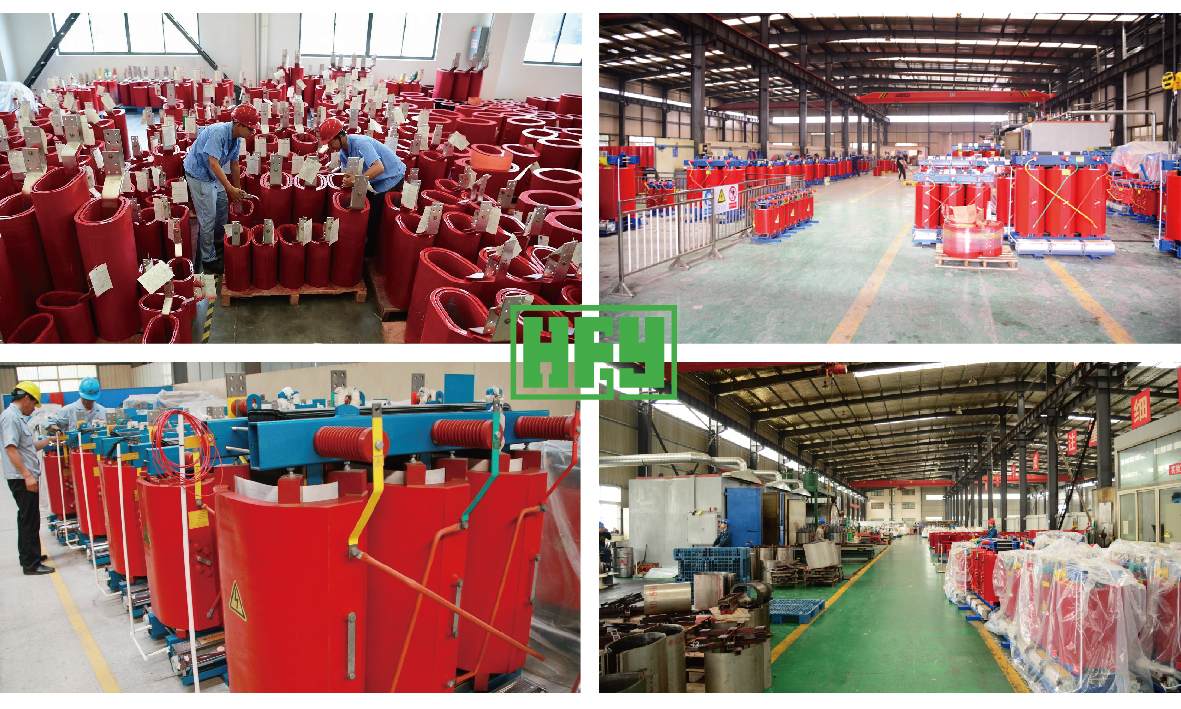

SC(B)10 Series Resin-insulated Dry Type Transformer,cast resin transformer,dry-type transformer，cast resin dry transform Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Qingdao Hengfengyou Electrical Engineering Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Rated Capacity (KVA)	No-load Loss SCB10 (W)	No-load Loss SCBH15 (W)	Comparison	Load Loss SCB10 (W)	Load Loss SCB15 (W)
200	620	200	68%	2530	2530
250	720	230		2760	2760
315	880	280		3470	3470
400	980	310		3990	3990
500	1160	360	69%	4880	4880
630	1340	410		5880	5880
800	1520	480		6960	6960
1000	1770	550		8130	8130
1250	2090	650		9690	9690
1600	2450	760		11730	11730
2000	3050	1000	67%	14450	14450
2500	3600	1200	67%	17170	17170

	ScBH15	Silicon Steel Sheet ScBH 10	Review analysis
Operating Temperature	70℃	100℃	Amorphous transformer core temperature is about 30℃ coil temperature is about 40℃; silicon steel transformer core temperature is about 45℃, coil temperature is about 50℃. The amorphous transformer can work under lowtemperature , has strong overload capacity, is much safer.
Insulation Cracking	Slow	Fast	Amorphous transformer has the property of low loss, producing less heat, low operating temperature, slow insulation cracking, high reliability, long working life.
Working Life	30 years reliable operation	20 years reliable operation
Harmonic Resistance	Property not affected by the harmonic voltage	Causing higher iron loss and noise.	Iron loss is 1/10 of the silicon steel sheet transformer under high frequency, it can decrease iron loss caused by harmonic current when operating with harmonic voltage Taking advantage of transformer capacity to reduce the effect caused by harmonic, and reduce equipment investment cost, increase the system stability.
