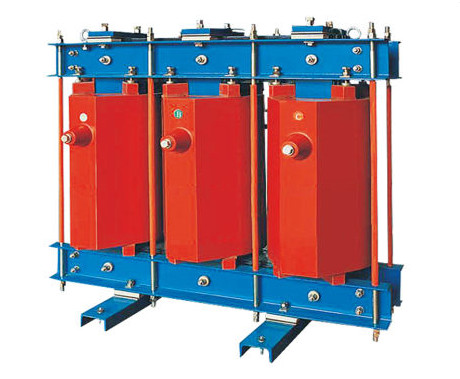

Three-Phase Medium Voltage Dry-Type Cast Resin Power Supply Transformer
10KV 10~2500KVA Cast resin Dry Type distribution transformer
S11-M series hermetically sealed oil immersed power transformer has the advantage of low loss, low noise and high efficiency, which can obtain good energy saving effect and reduce pollution.Compared with ordinary oil immersed transformer, hermetically sealed transformers don 't need oil coservator, oil volume is automatically regulated and compensated by elastic corrugated sheet of corrugated tank.Transformer oil is kept out of air, which can effectively prevet deterioration and insulation aging of oil, ad enhance operation reliability.
1. Rated capacity : 30~16000kVA
2. Rated HV : 6kV to 35 kV
3. Frequency : 50Hz or 60Hz
4. Cooling methods : ONAN or ONAF
5. Tapping Range : ±5% ±2x2.5% ±4x2.5%
6. Regulator way : off-circuit-tap-changing or on-load-tap-changing
7. Phase : Single Phase or Three Phases
8. Connection Symbol : Yyn0 or Dyn11 or others
9. The altitude of installation could not be over 1000m;environment temperature should be less than 40
10. Coil temperature rise : 1000K
11. Cooling methods : AN or AF
12. Crust prevention class : IP00, IP20, IP23
13. Insulation class : F class
14. Insulation level:
10KV,power frequency withstand voltage 35KV,thunder impact voltage 75KV
20KV,power frequency withstand voltage 50KV,thunder impact voltage 125KV
35KV,power frequency withstand voltage 70KV,thunder impact voltage 170KV
15. Product Standard : GB1094 GB6450 GB/T10228 DIN42523 IEC726
16. Can run in 100% relative humidity or other harsh environment.
TECHNICAL INDEX
| RATED CAPACITY | VOLTAGE COMBINATION | CONNECTION GROUP | LOSS (KW) | NO-LOAD CURRENT | SHORT-CIRCUIT IMPEDANCE | WEIGHT(KG) |
| (KVA) | HV(KV) | HIGH-VOLTAGE TAPPING RANGE | LV (KV) | SYMBOL | NO-LOAD | ON-LOAD | (%) | (%) | OIL WEIGHT | GROSS WEIGHT |
| 30 | 6
6.3
10
10.5
11 | 5% | 0.4 | Dyn11
Yzn11
Yyn0 | 0.13 | 0.63/0.60 | 2.3 | 4 | 75 | 295 |
| 50 | 0.17 | 0.91/0.87 | 2 | 88 | 395 |
| 63 | 0.2 | 1.09/1.04 | 1.9 | 95 | 420 |
| 80 | 0.25 | 1.31/1.25 | 1.9 | 103 | 480 |
| 100 | 0.29 | 1.58/1.50 | 1.8 | 115 | 540 |
| 125 | 0.34 | 1.89/1.80 | 1.7 | 130 | 645 |
| 160 | 0.4 | 2.31/2.20 | 1.6 | 145 | 740 |
| 200 | 0.48 | 2.73/2.60 | 1.5 | 175 | 885 |
| 250 | 0.56 | 3.20/3.05 | 1.4 | 195 | 1010 |
| 315 | 0.67 | 3.83/3.65 | 1.4 | 230 | 1205 |
| 400 | 0.8 | 4.52/4.30 | 1.3 | 255 | 1375 |
| 500 | 0.96 | 5.41/5.15 | 1.2 | 285 | 1620 |
| 630 | Dyn11
Yyn0 | 1.2 | 6.2 | 1.1 | 4.5 | 350 | 1960 |
| 800 | 1.4 | 7.5 | 1 | 405 | 2310 |
| 1000 | 1.7 | 10.3 | 1 | 490 | 2690 |
| 1250 | 1.95 | 12 | 0.9 | 550 | 3315 |
| 1600 | 2.4 | 14.5 | 0.8 | 625 | 3985
|
