80kVA Single and Three Phase Dry Type Transformer
10KV 10~2500KVA Cast resin Dry Type distribution transformer

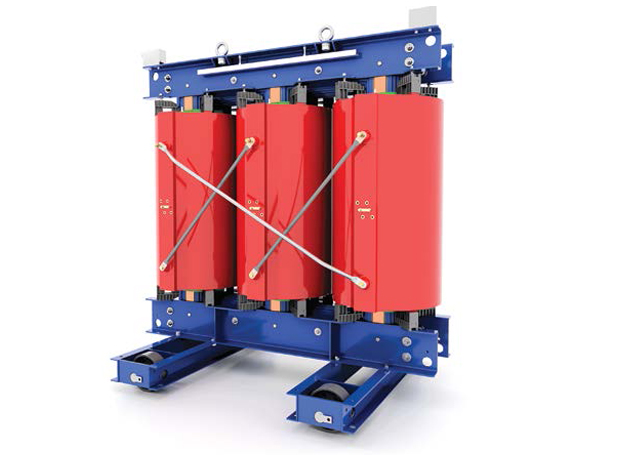

SCB10 epoxy resin cast dry-type transformer is an upgrade product of SCB9. SCB10 series products features significant high mechanical strength, high electrical strength, high heat resistance and low loss, low noise, low partial discharge. So SCB10 dry-type transformer is environmental protection products for new generation of urban power grid update, and is the mainstream product in the current transformer market. It is especially suitable for commercial center, airport, high building, chemical plant, nuclear power station, ship and other important places requiring fire prevention, explosion-proof and moisture-proof.
Advantage
1. Low loss, low noise, low partial discharge.
2. Strong anti-short circuit capability and high anti-lightning impact level.
3. Excellent moisture resistance for operation at 100% relative humidity.
4. Strong overload capability for long-term operation at 150% loading.
Transformer Test Report
For all transformers developed and supplied by Pearl Electric, Type tests and Specials Tests have been carried out in internationally-recognized independent test lab, and test reports have been obtain, including:
1. C2/E2/F1 test report for cast resin dry type transformer
2. Aging test report for cast resin dry type transformer
3. Aseismatic report for cast resin dry type transformer
4. Type and special test reports for class 1E dry type transformer for nuclear power station application
5. Type and special test reports for various traction/excitation trasnformers
6. . Type and special test reports for amorphous alloy core dry type transformer
7. Type and special test reports for three-phroof (salt-fog, midew, humdid-heat) performance
TECHNICAL INDEX
| RATED CAPACITY | VOLTAGE COMBINATION | CONNECTION GROUP | LOSS (KW) | NO-LOAD CURRENT | SHORT-CIRCUIT IMPEDANCE | WEIGHT(KG) |
| (KVA) | HV(KV) | HIGH-VOLTAGE TAPPING RANGE | LV (KV) | SYMBOL | NO-LOAD | ON-LOAD | (%) | (%) | OIL WEIGHT | GROSS WEIGHT |
| 30 | 6
6.3
10
10.5
11 | 5% | 0.4 | Dyn11
Yzn11
Yyn0 | 0.13 | 0.63/0.60 | 2.3 | 4 | 75 | 295 |
| 50 | 0.17 | 0.91/0.87 | 2 | 88 | 395 |
| 63 | 0.2 | 1.09/1.04 | 1.9 | 95 | 420 |
| 80 | 0.25 | 1.31/1.25 | 1.9 | 103 | 480 |
| 100 | 0.29 | 1.58/1.50 | 1.8 | 115 | 540 |
| 125 | 0.34 | 1.89/1.80 | 1.7 | 130 | 645 |
| 160 | 0.4 | 2.31/2.20 | 1.6 | 145 | 740 |
| 200 | 0.48 | 2.73/2.60 | 1.5 | 175 | 885 |
| 250 | 0.56 | 3.20/3.05 | 1.4 | 195 | 1010 |
| 315 | 0.67 | 3.83/3.65 | 1.4 | 230 | 1205 |
| 400 | 0.8 | 4.52/4.30 | 1.3 | 255 | 1375 |
| 500 | 0.96 | 5.41/5.15 | 1.2 | 285 | 1620 |
| 630 | Dyn11
Yyn0 | 1.2 | 6.2 | 1.1 | 4.5 | 350 | 1960 |
| 800 | 1.4 | 7.5 | 1 | 405 | 2310 |
| 1000 | 1.7 | 10.3 | 1 | 490 | 2690 |
| 1250 | 1.95 | 12 | 0.9 | 550 | 3315 |
| 1600 | 2.4 | 14.5 | 0.8 | 625 | 3985
|
Our workshop:
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
